Everything about RFID
How Do I Get Started With RFID
Radio-frequency identification (RFID) can provide your business with real-time information about the location and status of your assets and inventory.
RFID PRODUCT CATEGORY
RFID TAG
Metal RFID Tag
Metal RFID TAg
EPC Gen 2 / ISO 18000-6c
EPC/USR Memory : 96 bit / 688 bit
Chip : Alien higgs9
Tag Size : 130mm * 42mm * 10.5 t
Material: PC
Weight: 40g
Label RFID Tag
Fixed RFID Reader
EPC Gen 2 / ISO 18000-6c
EPC/USR Memory : 128 bit / 96 bit
Chip : NXP Ucode8
Antenna Size : 91mm * 21mm
Antenna Material : AL
On-Metal RFID Tag
On-Metal RFID Tag
EPC Gen 2 / ISO 18000-6c
EPC/USR Memory : 128 bit / 32 bit
Chip : Impinj Monza R6-P,
NXP Ucode8
Tag Size : 65mm * 35mm* 1.25 t
Antenna Material : PET/AL/Foam
RFID READER
RFID Fixed Reader
Fixed RFID Reader
EPC Gen 2 / ISO 18000-6c
Frequency : 917.3~920.3 MHz (6CH)
RF Output port : 4 ports
Interface : RS-232C, LAN
Size : 107mm * 98mm * 32mm
Weight: 430g
RFID Fixed Reader
Fixed RFID Reader
EPC Gen 2 / ISO 18000-6c
Frequency : 917.3~920.3 MHz (6CH)
RF Output port : 4 ports
Interface : RS-232C/485, LAN
Size : 141mm * 160mm * 38mm
Weight: 743g
Desktop RFID Reader
Desktop RFID Reader
EPC Gen 2 / ISO 18000-6c
Reading Range : Upto 1m
Interface : USB, HID(RS232)
Size : 140(D)mm * 26(H)mm
Material: ABS
RFID ANTENNA
RFID Antenna
RFID Antenna
Frequency Range : 902 ~ 928MHz
Gain : 9dBi
Beam Width : Hor 65 / Ver 65
Polarization : Circular Polarization
Dust & Water Proof : IP65
RFID Antenna
Fixed RFID Reader
Frequency Range : 902 ~ 928MHz
Gain : 9dBi
Beam Width : Hor 65 / Ver 65
Polarization : Circular Polarization
Dust & Water Proof : IP65
Desktop RFID Reader
Desktop Antenna
Frequency Range : 902 ~ 928MHz
Gain : 8dBi
Beam Width : 39
Polarization : RHCP
Dust & Water Proof : IP65
RFID DEVICE
RFID DEVICE
Fixed RFID Reader
EPC Gen 2 / ISO 18000-6c
RF Output : 30dBm (Max. 1W)
Dust&Water proof : IP65
기기 연결방식 : 흡착패드 부착 방식
Interface : Bluetooth, Wifi, USB/Serial
Battery : 6,800mAh
RFID DEVICE

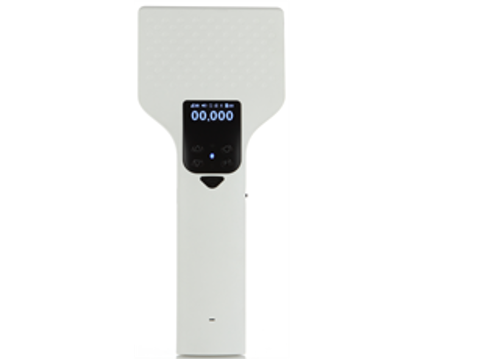

RFID PDA
EPC Gen 2 / ISO 18000-6c
RF Output : 30dBm (Max. 1W)
Size : 260mm * 110mm * 40mm
Weight : 240g(max)
Interface : USB/Bluetooth
Battery : 3,000mAh
RFID DEVICE

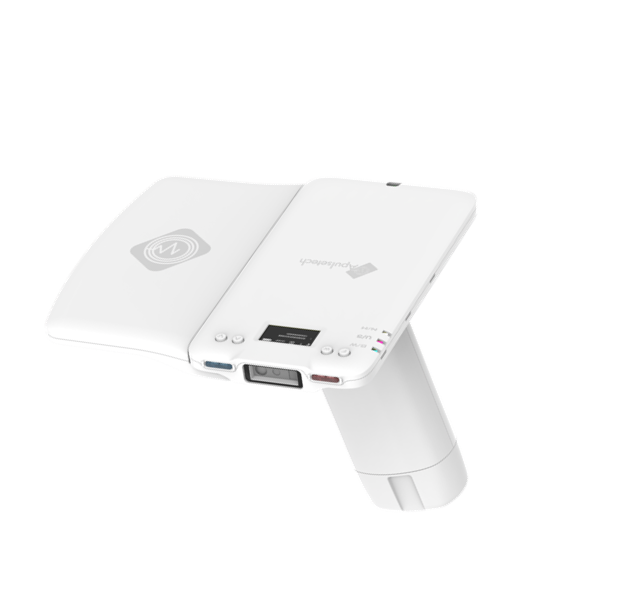

RFID PDA
EPC Gen 2 / ISO 18000-6c
RF Output : 30dBm (Max. 1W)
Size : 164mm * 50mm * 30mm
Weight : 210g(max)
Interface : USB/Bluetooth
Battery : 3,200mAh
RFID PRINTER
RFID PRINTER
RFID Printer
EPC Gen 2 / ISO 18000-6c
Antenna : Internal adjustable &
external fixed
Label Pitch : Down to 0.625 in (16 mm)
Resolution : 203dpi, 300dpi,
Interface : Ethernet, USB Host/
Device, Serial
RFID PRINTER
RFID PRINTER
EPC Gen 2 / ISO 18000-6c
RF Output : 30dBm (Max. 1W)
Size : 260mm * 110mm * 40mm
Weight : 240g(max)
Interface : USB/Bluetooth
Battery : 3,000mAh
RFID PRINTER
RFID PRINTER
EPC Gen 2 / ISO 18000-6c
RF Output : 30dBm (Max. 1W)
Size : 164mm * 50mm * 30mm
Weight : 210g(max)
Interface : USB/Bluetooth
Battery : 3,200mAh
